Tube Settlers

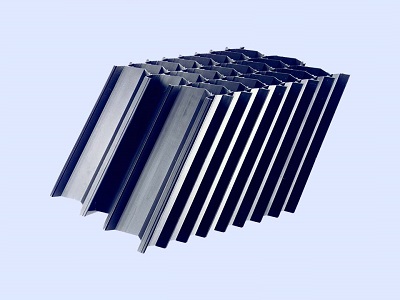

Tube settlers also called as lamella clarifiers, are used to remove solids in the waste water treatment. Tube settlers are single PVC profiles combined to tubes. This design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in w ater and wastewater treatment plants.
Advantages:
- Most common and widely accepted tube settler design
- Easy and quick to install as per site conditions
- Can be transported in the form of loose tubes and hence saves transportation cost
- Due to tongue and groove mechanism, it requires no special training to install at site
- High specific settling area
- Only bottom support structure required to install.
Tube Settlers
| PROPERTY | Value |
|---|---|
|
PROPERTY
Model No.
|
Value
TS 4150
|
|
PROPERTY
MOC
|
Value
PVC, UV Stabilized
|
|
PROPERTY
Shape
|
Value
Hexagon Chevron
|
|
PROPERTY
Fitting
|
Value
Tongue and groove
|
|
PROPERTY
Thickness
|
Value
1mm +/- 0.1mm
|
|
PROPERTY
Plan Settling Area (at 60 degrees slope)
|
Value
11 m2/m3
|
|
PROPERTY
Plan Settling Area (at 55 degrees slope)
|
Value
13 m2/m3
|
|
PROPERTY
Cross sectional area
|
Value
120mm x 44mm
|
|
PROPERTY
Hydraulic Radius
|
Value
1.7 cm
|
|
PROPERTY
Maximum Continuous Operating Temperature
|
Value
55° C
|
|
PROPERTY
Storage
|
Value
To be kept away from direct sunlight
|
|
PROPERTY
Vertical module height (H/mm)
|
Value
500 mm – 1500 mm
|
|
PROPERTY
Contin. operation temp. Max operation temp. PVC (°C)
|
Value
55°C
|
